Oscilador Seiler (CIR22205S)

Written by: Newton C. Braga
Category: Banco de circuitos

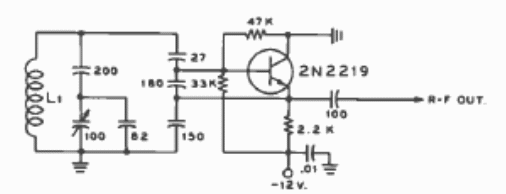

Este tipo de oscilador se encontró en un Radio Handbook de 1977. El circuito opera entre 5 y 5.6 MHz con los componentes sugeridos.



Oscilador Seiler
Oscilador Seiler
