Transmisor Doppler de ultrasonido (CIR15760S)

Written by: Newton C. Braga
Category: Banco de circuitos

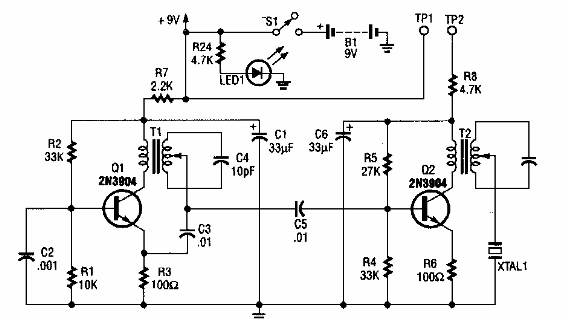

     Este circuito se encontró en Radio Electronics desde los años 90. Produce una señal ultrasónica en un transductor especial a una frecuencia de 2.25 MHz. No se proporcionó información sobre los transformadores.



Transmisor Doppler de ultrasonido
Transmisor Doppler de ultrasonido
