Amplificador de retroalimentación de tensión LM7171 de Texas Instruments

Written by: INCB
Category: Nuevos Componentes , Industria y Noticias

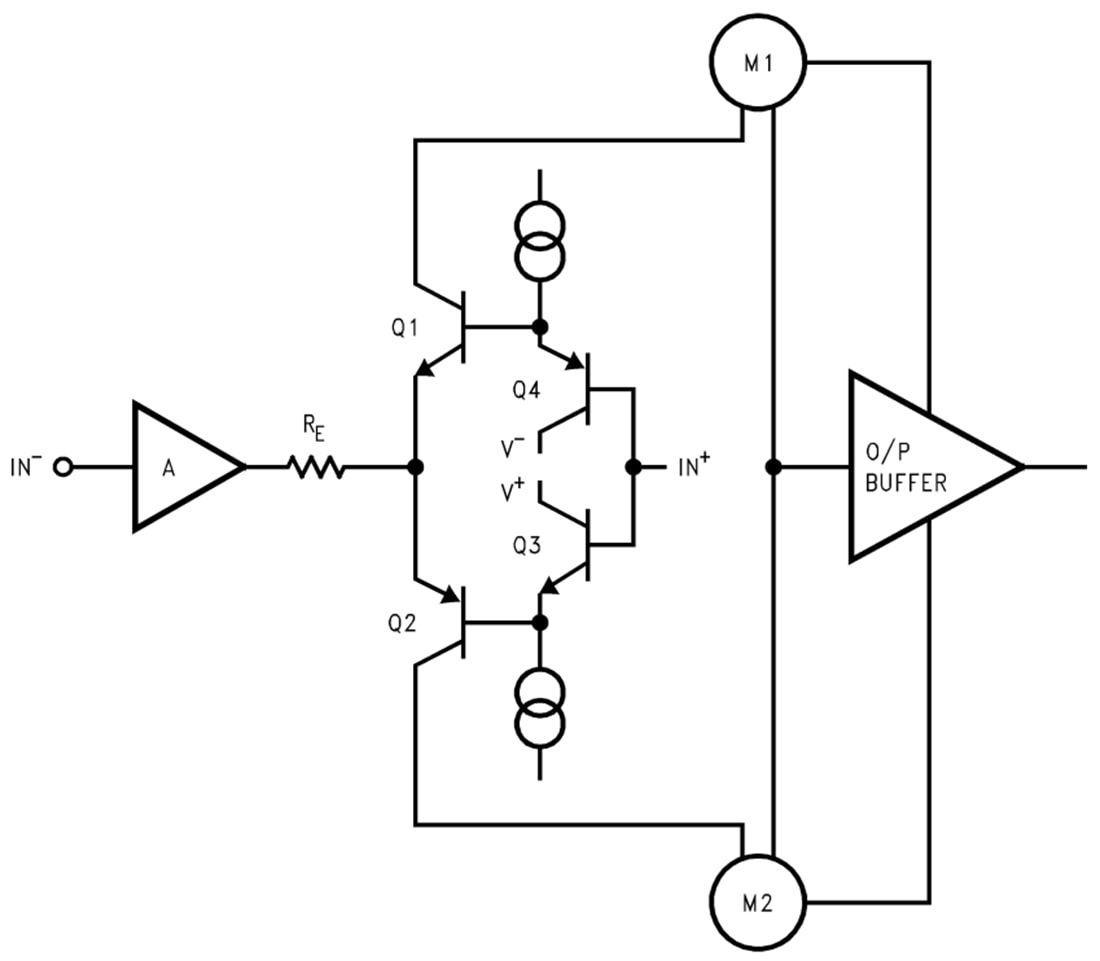

El amplificador de retroalimentación de tensión LM7171 de Texas Instruments es un amplificador de retroalimentación de tensión de alta velocidad con la característica de giro de un amplificador de retroalimentación de corriente. También se puede utilizar en todas las configuraciones tradicionales de amplificador de retroalimentación de tensión. El LM7171 es estable para ganancias tan bajas como +2 o -1. Proporciona una velocidad de respuesta muy alta a 4100 V / μs y un ancho de banda de ganancia unitaria amplia de 200 MHz mientras consume solo 6,5 mA de corriente de alimentación. Es ideal para aplicaciones de procesamiento de señales y video de alta velocidad, como HDSL y amplificadores de pulso. Con una corriente de salida de 100 mA, el LM7171 se puede utilizar para distribución de video, un controlador de transformador o un controlador de diodo láser.

Clique aquí para ver las hojas de datos
