Fotoacopladores Toshiba TLP570x GaAℓAs

Written by: Newton C. Braga
Category: Nuevos Componentes , Industria y Noticias

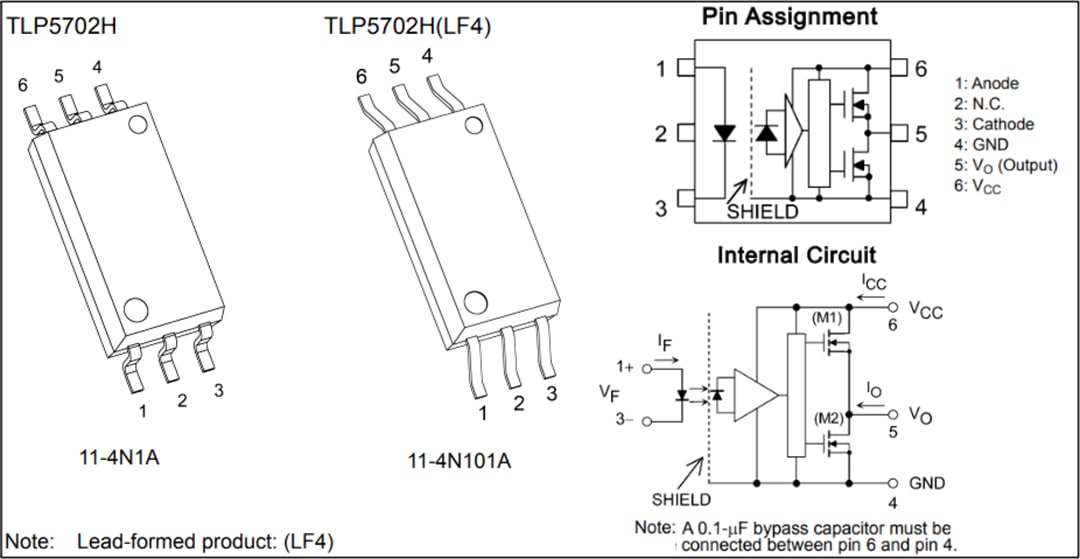

Los fotoacopladores Toshiba TLP570x GaAℓAs integran un diodo emisor de luz infrarroja (LED) de arseniuro de galio y aluminio acoplado ópticamente a un fotodetector integrado de alta ganancia y alta velocidad en una carcasa compacta SO6L de 6 pines. La serie TLP570x es físicamente más pequeña y delgada que un fotoacoplador en un paquete DIP de 8 pinos y cumple con los estándares internacionales de seguridad para aislamiento reforzado. Los fotoacopladores Toshiba TLP570x GaAlAs cuentan con una solución de menor tamaño para aplicaciones que requieren una certificación estándar de seguridad. Un protector de ruido interno proporciona inmunidad transitoria en modo común garantizada de 20 kV / µs. Los fotoacopladores Toshiba TLP570x GaAℓAs están disponibles en variantes de carcasa SO6L estándar y SO6L (LF4) de plomo ancho. Estos dispositivos son ideales para su uso como un controlador de puerta MOSFET de potencia o IGBT de clase pequeña a mediana.

Clique aquí para ver las hojas de datos
