Oscilador de puente de Viena (CIR22413S)

Written by: Newton C. Braga
Category: Banco de circuitos

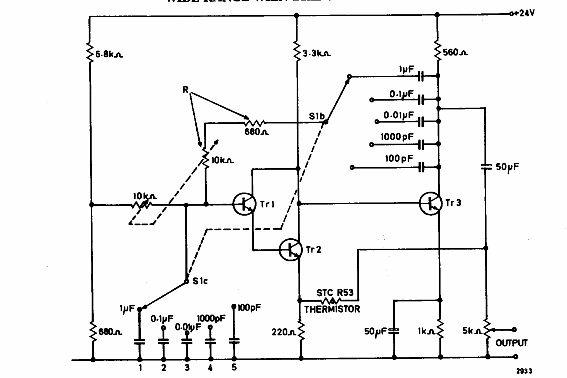

Este circuito oscilador multibanda puente de Viena se encontró en un manual de transistores Ferranti de 1974. El circuito genera señales de 25 Hz a 1 MHz en 5 bandas seleccionadas por los capacitores.



Oscilador de puente de Viena
Oscilador de puente de Viena
