Mini amplificador (CIR22246S)

Written by: Newton C. Braga
Category: Banco de circuitos

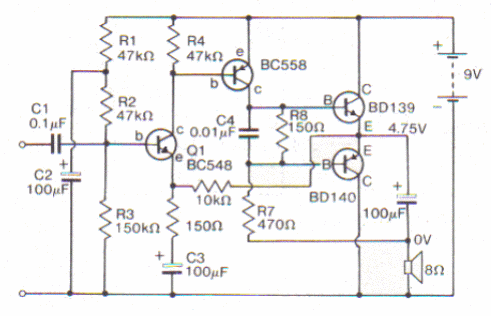

El amplificador de fracción de watt indicado tiene una buena ganancia, requiriendo solo una entrada de 100 mV para una excitación de máxima potencia.



Mini amplificador
Mini amplificador
