Voltímetro de gráfico de barras automotriz (CIR20328S)

Written by: Newton C. Braga
Category: Banco de circuitos

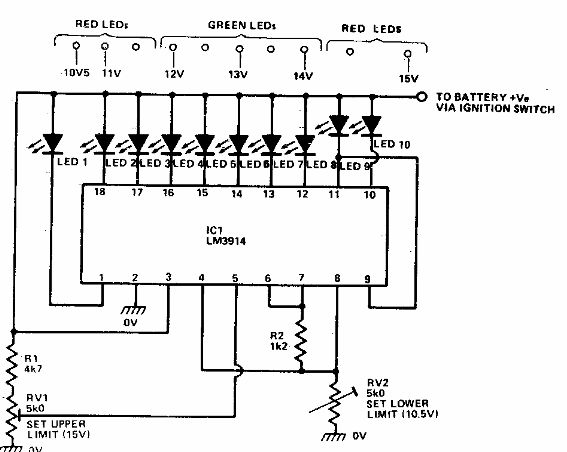

Basado en el conocido LM3914, este circuito se encontró en una antigua documentación estadounidense. Trimpots ajustan los límites de escala.
