Oscilador con salida variable (CIR19943S)

Written by: Newton C. Braga
Category: Banco de circuitos



Encontramos este circuito en una publicación de 1998. El circuito tiene controles tanto para la frecuencia como para la intensidad de la señal. Se usa una lámpara para monitorear las señales. La alimentación se realiza con una tensión de 12 V.

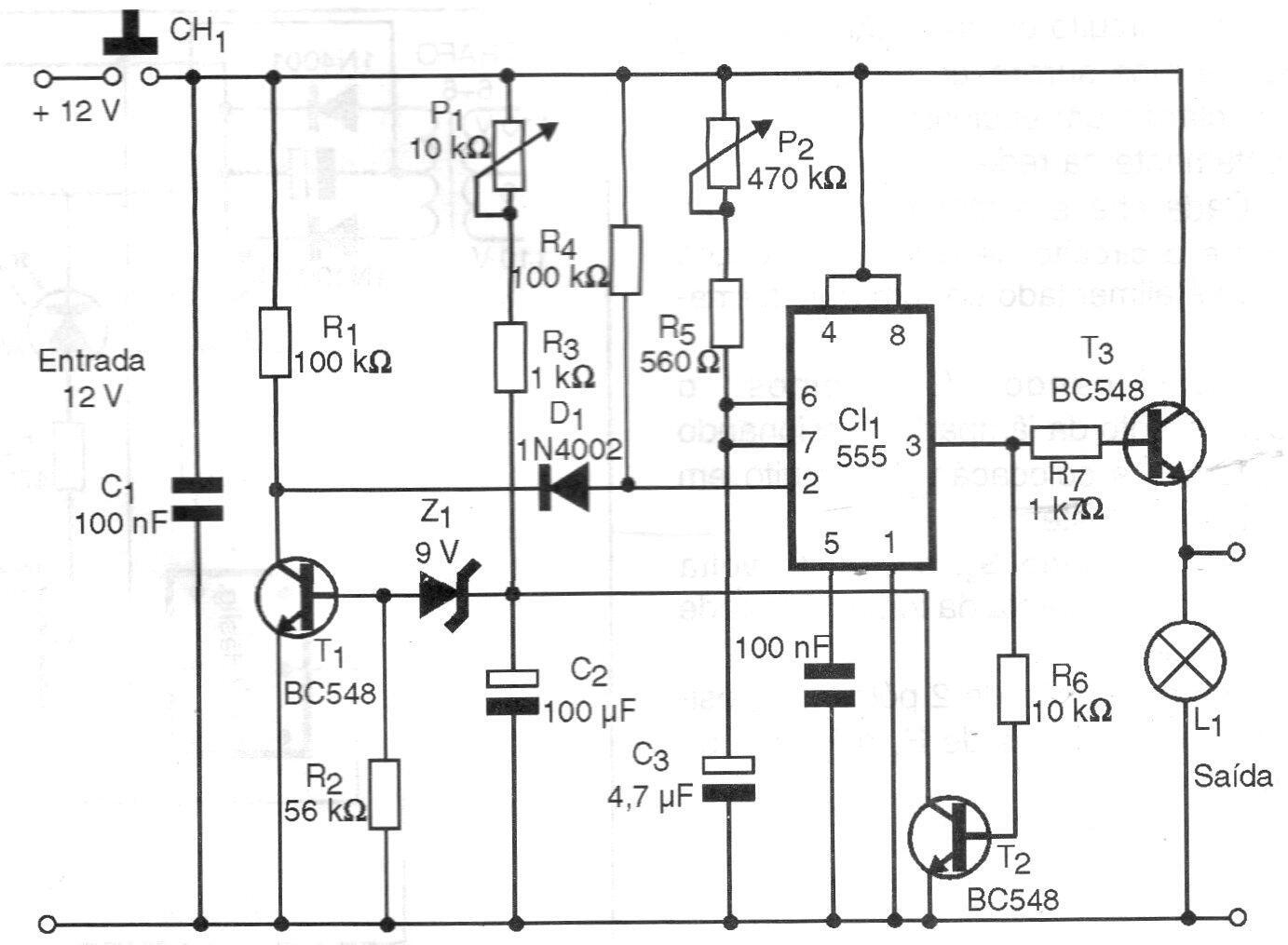

Oscilador con salida variable
Oscilador con salida variable | Haga click en la imagen para ampliar |
