Filtro Activo Pasa Bajas (CIR9300S)

Written by: Newton C. Braga
Category: Banco de circuitos

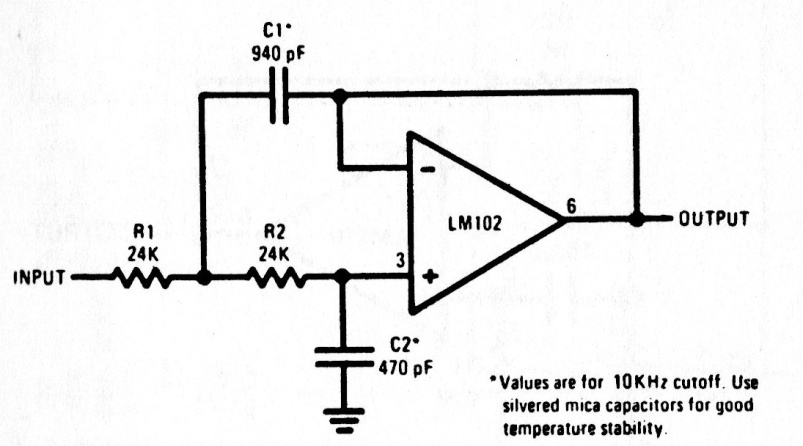

     El amplificador operacional utilizado en este circuito admite el equivalente, ya que el circuito es de una documentación antigua. Los componentes se calculan para una frecuencia de 10 kHz y la fuente de alimentación debe ser simétrica.




| Haga click en la imagen para ampliar |
