Fuente simple de 9 V (CIR1589S)

Written by: Newton C. Braga
Category: Banco de circuitos

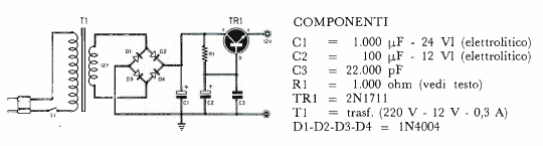

    Esta fuente, encontrada en una publicación italiana Elettronica Práctica número 9, de 1977, suministra corrientes hasta unos 200 mA. La corriente puede ser mayor con el BD135. El transformador es de 12 V con al menos 250 mA.
