Texas Instruments AMC23C10 Comparador independiente de precisión

Written by: Newton C. Braga
Category: Nuevos Componentes , Industria y Noticias

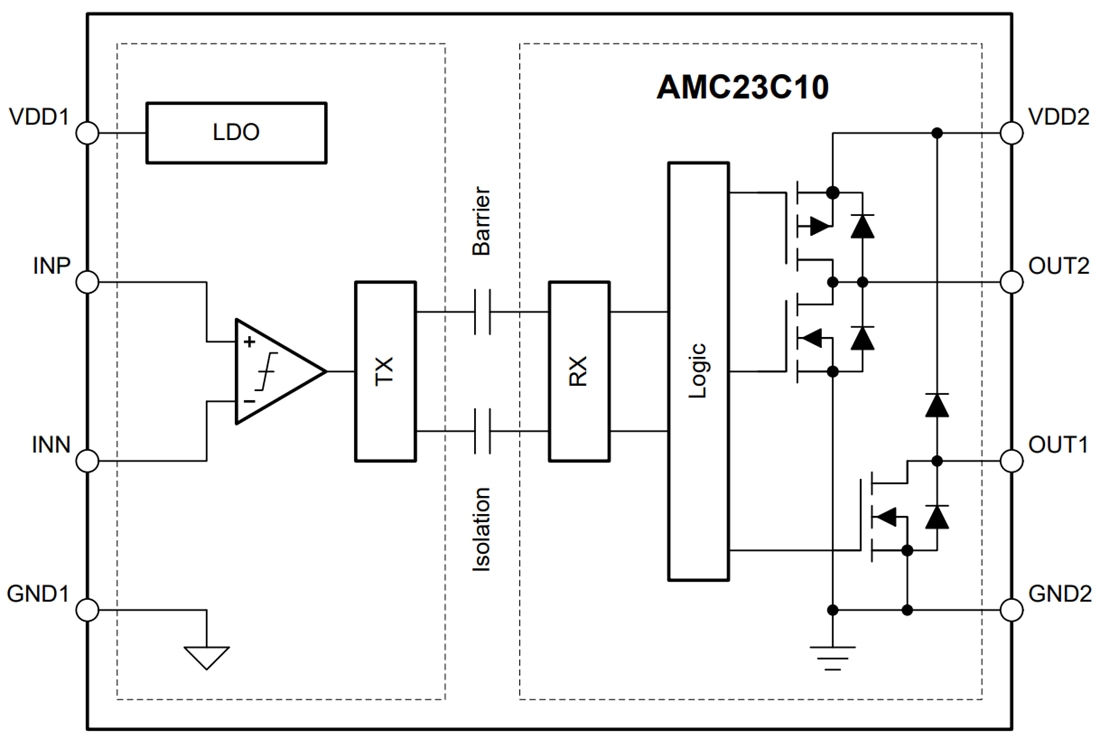

El comparador aislado de precisión AMC23C10 de Texas Instruments tiene un tiempo de respuesta corto diseñado explícitamente para la detección de cruce por cero de señales de alta tensión que deben aislarse galvánicamente de los circuitos de baja tensión. Las salidas de drenaje abierto y push-pull están separadas del circuito de entrada por una barrera de aislamiento que es altamente resistente a la interferencia magnética. Esta barrera está certificada para proporcionar aislamiento galvánico reforzado hasta 5kVRMS de acuerdo con VDE 0884-17 y UL1577. También soporta una tensión de trabajo de hasta 1kVPK.

Clique aquí para ver las hojas de datos
