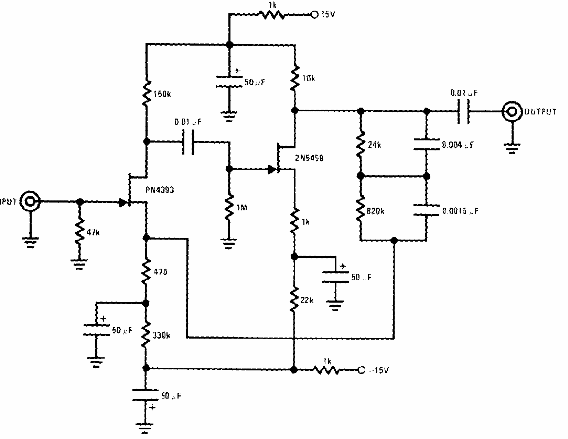

Preamplificador para Fonocaptor Magnético (CIR1909S)

Written by: Newton C. Braga
Category: Banco de circuitos



   Encontramos este circuito en el JFET Databook de National Semiconductor. Los FET pueden ser equivalentes como los BF245. La fuente debe tener un excelente filtrado.
