Transmisor con Diodo Tunel a 73 MHz (CIR4936S)

Written by: Newton C. Braga
Category: Banco de circuitos

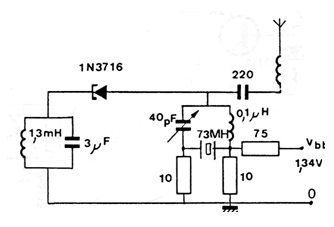

     Este circuito genera una señal que depende del cristal. La alimentación viene de una sola pila y el alcance es de unos metros, funcionando como un micrófono inalámbrico o emisor no modulado.
