Termómetro de 0 a 100 grados Celsius (CIR1387S)

Written by: Newton C. Braga
Category: Banco de circuitos

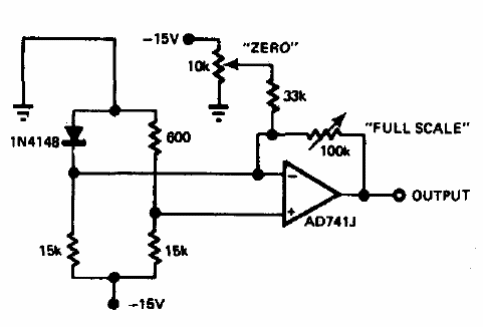

    Este circuito utiliza como sensor un diodo común. La salida va de 0 a 10 V con el cambio de temperatura en el rango indicado. La fuente de alimentación debe ser simétrica. La precisión depende de los ajustes.
