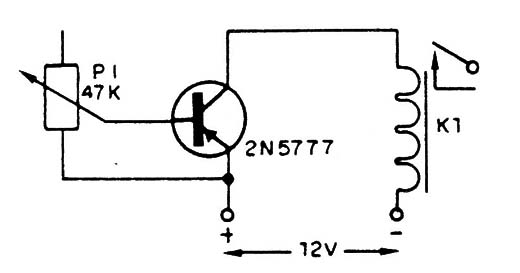

El relé usado en este circuito es ultrasensible, con resistencia de bobina entre 2000 y 5000 ohm. Se aconseja experimentar con reed-relés. P1 es el ajuste de sensibilidad. Prácticamente cualquier tipo de fototransistor puede usarse en este circuito, inclusive un 2N3055 sin protección.



Fotorrele
Fotorrele
