Retardo de 30 segundos (CIR20764S)

Written by: Newton C. Braga
Category: Banco de circuitos

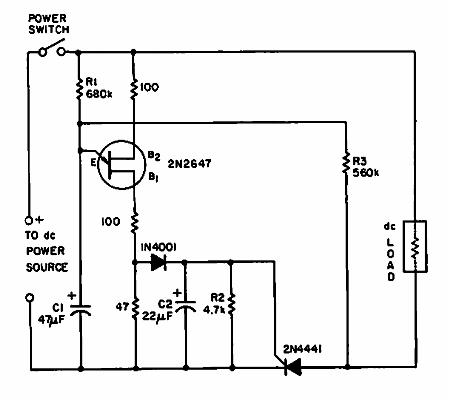

Encontrado en una documentación de 1969, este circuito suministra una carga después de un intervalo dado por R1 y C1. Estos componentes se pueden cambiar a otros tiempos.



Retardo de 30 segundos
Retardo de 30 segundos
