Probador Lógico TTL y CMOS (CIR1364S)

Written by: Newton C. Braga
Category: Banco de circuitos

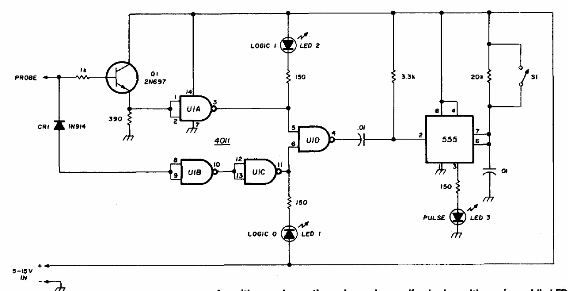

    Este circuito es de una documentación para radioaficionados de 1978. El circuito tanto analiza niveles lógicos de circuitos TTL como CMOS. La alimentación viene del propio circuito en prueba.
