Temporizador secuencial (CIR17695S)

Written by: Newton C. Braga
Category: Banco de circuitos

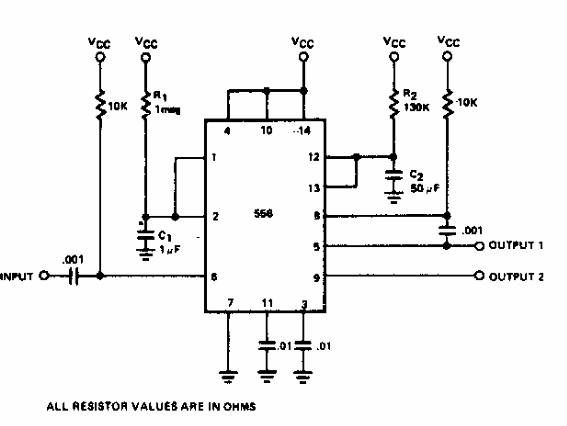

Este circuito se encuentra en documentación de la década de 1980. El circuito integrado utilizado consiste en un doble 555. Los tiempos vienen dados por las redes R1 x C1 y R2 x C2.
