Prueba de RF para multímetro (CIR17560S)

Written by: Newton C. Braga
Category: Banco de circuitos

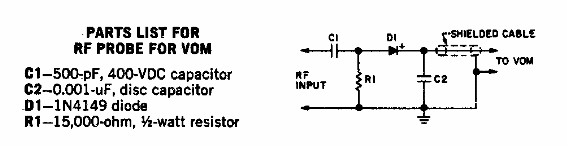

Con este circuito es posible medir señales de RF con un multímetro común. Se pueden detectar señales de hasta 200 MHz. El diodo admite equivalentes para propósito-general.



Prueba de RF para multímetro
Prueba de RF para multímetro







pcbway_012_2024
