Convertidor para 11 metros (CIR16412S)

Written by: Newton C. Braga
Category: Banco de circuitos

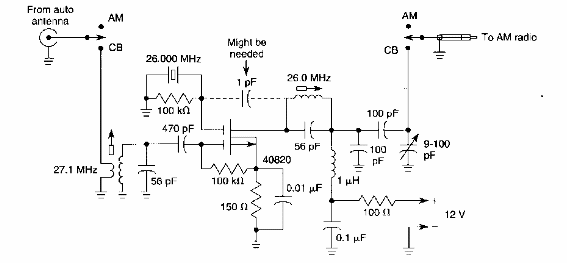

Encontrado en la documentación estadounidense, este circuito convierte señales de la banda de 27 MHz para su recepción en una radio AM.



Convertidor para 11 metros
