Oscilador senoidal puente Wien (CIR15552S)

Written by: Newton C. Braga
Category: Banco de circuitos

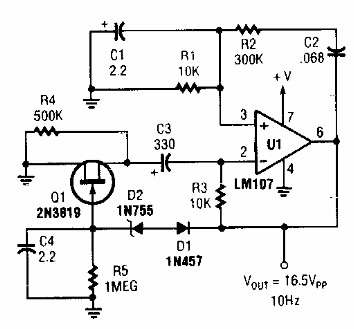

    Este circuito se obtuvo en una Popular Electronics de los años 90. Genera una señal sinusoidal de 10 Hz con una amplitud de 16.5 V. El operacional admite equivalente.



Oscilador senoidal puente Wien
Oscilador senoidal puente Wien
