Sensor clásico de corriente de lado alto (CIR12922S)

Written by: Newton C. Braga
Category: Banco de circuitos

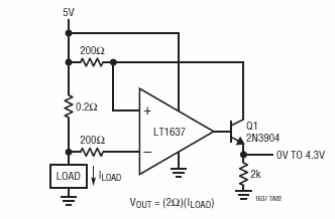

    Este clásico sensor de corriente del lado positivo es de un manual de Linear Technology de 2005. El transistor es de uso general y tiene una salida de 0 a 4,3 V. El circuito se puede usar como shield.
