Detector de nivel de líquido (CIR12971S)

Written by: Newton C. Braga
Category: Banco de circuitos

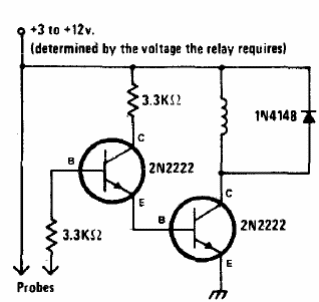

    Este circuito simple detecta cuando un líquido conductor llega a los sensores. El circuito no tiene control de sensibilidad y debe ser alimentado por una fuente aislada de acuerdo con la tensión del relé.



Detector de nivel de líquido
Detector de nivel de líquido
