aAmplificador MOSFET para VHF (CIR12225S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este amplificador MOSFET que opera en el rango VHF se encontró en una antigua documentación de telecomunicaciones estadounidense. Los circuitos sintonizados son para la frecuencia de funcionamiento.

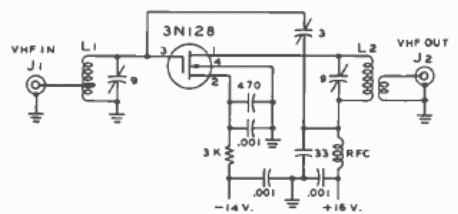

Amplificador MOSFET para VHF
Amplificador MOSFET para VHF
