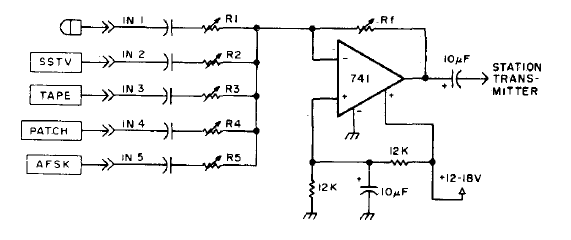

Mezclador con el 741 (CIR12495S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este circuito fue diseñado originalmente para aplicaciones de comunicaciones. Lo encontramos en una documentación para aficionados de la década de 1980. Los condensadores pueden ser de 100 nF y los trimpots de 100 k ohms.
