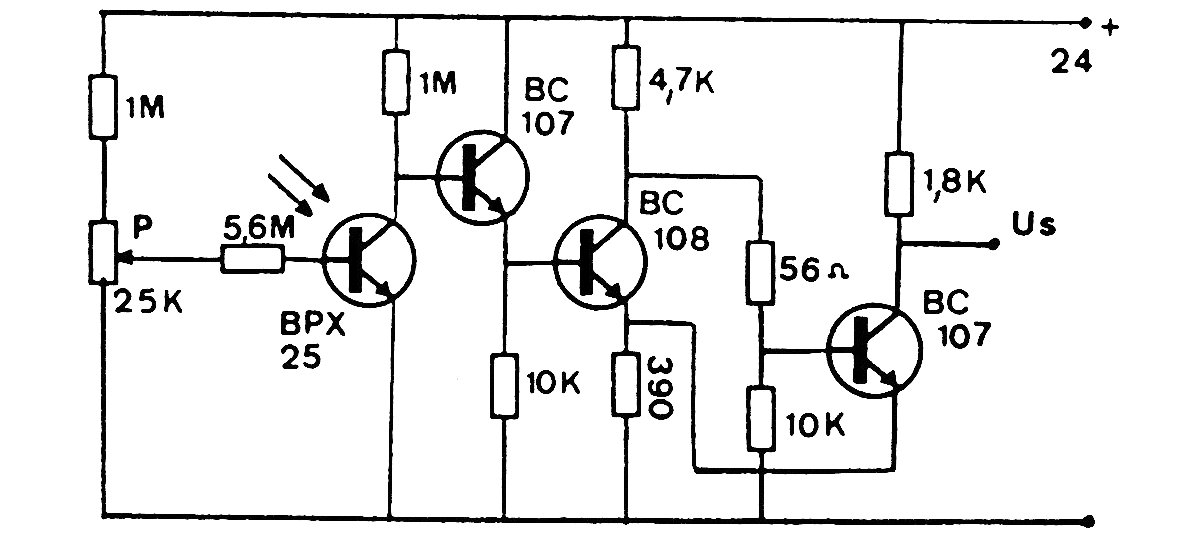

Detector de luz de alta sensibilidad (CIR7237S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Los transistores equivalentes modernos como los BC548 se pueden utilizar en este circuito de los años 80. El foto-transistor también puede ser prácticamente de cualquier tipo. Con cambios, el circuito se puede utilizar como shield sensor.




| Haga click en la imagen para ampliar |
