Regulador Conmutado de 5 V x 1,5 A 723 (CIR6746S)

Written by: Newton C. Braga
Category: Banco de circuitos

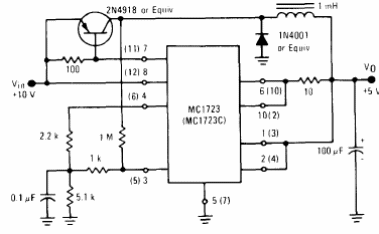

    El circuito integrado 723 es fabricado por diversas empresas de semiconductores con prefijos diferentes y las configuraciones sugeridas son similares. Este circuito de regulador conmutado es del Linear Databook de Motorola de 1990.
