Display Experimental de 4 Segmentos (CIR6371S)

Written by: Newton C. Braga
Category: Banco de circuitos

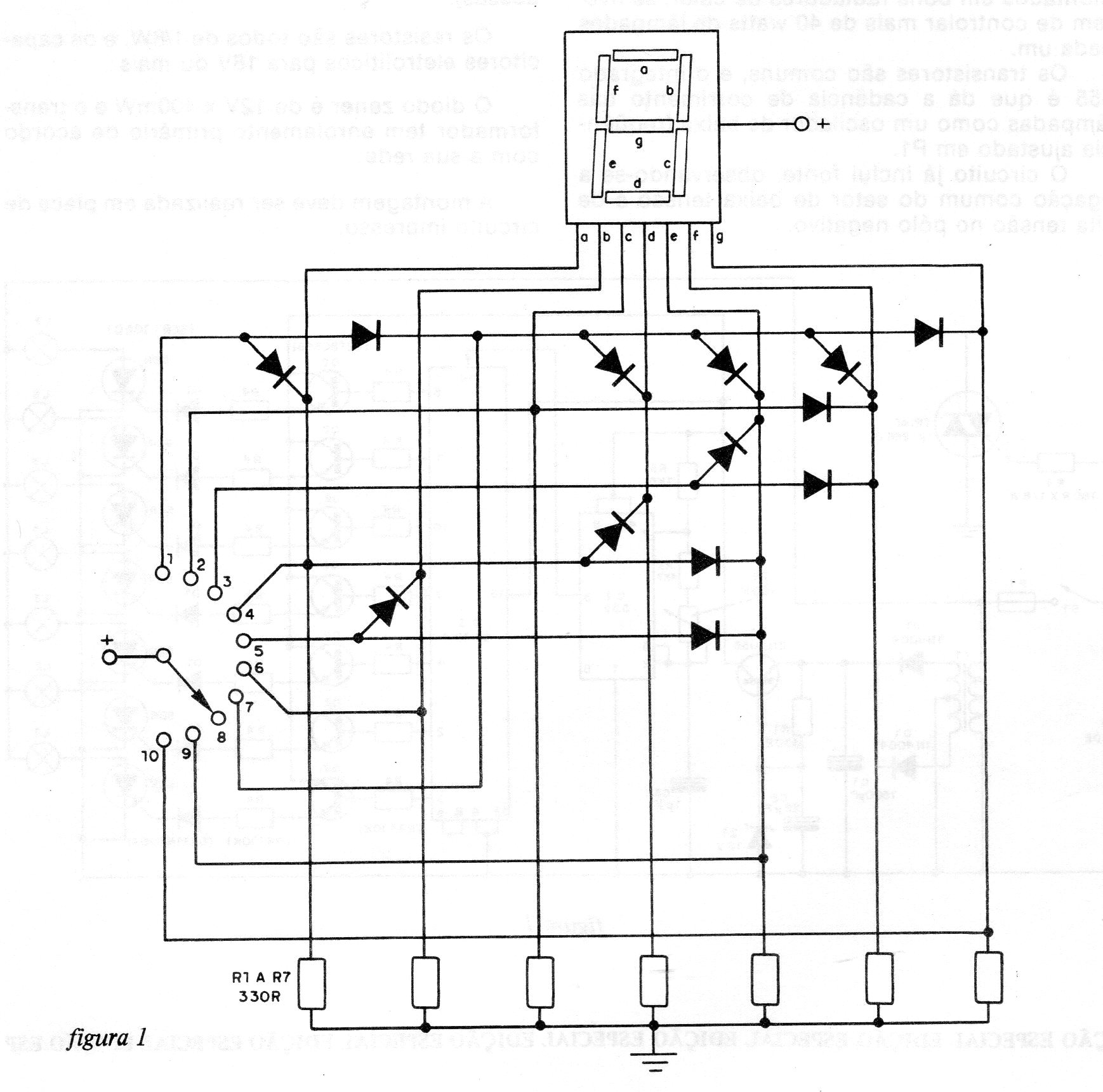

     Este circuito didáctico hace el accionamiento secuencial de 0 a 10 para demostrar el funcionamiento de un display de 7 segmentos. La alimentación es de 5 o 6 y los diodos pueden ser 1N4148 o cualquier tipo de uso general.




| Haga click en la imagen para ampliar |
