Receptor de control remoto de 3 Válvulas (V167S)

Written by: Newton C. Braga
Category: Mundo de las válvula



     Este receptor utiliza una batería de 6,75 V para la alta tensión y 1,5 V para los filamentos en configuración común en la época. El circuito es de una publicación japonesa de 1962 y opera en 27 MHz.

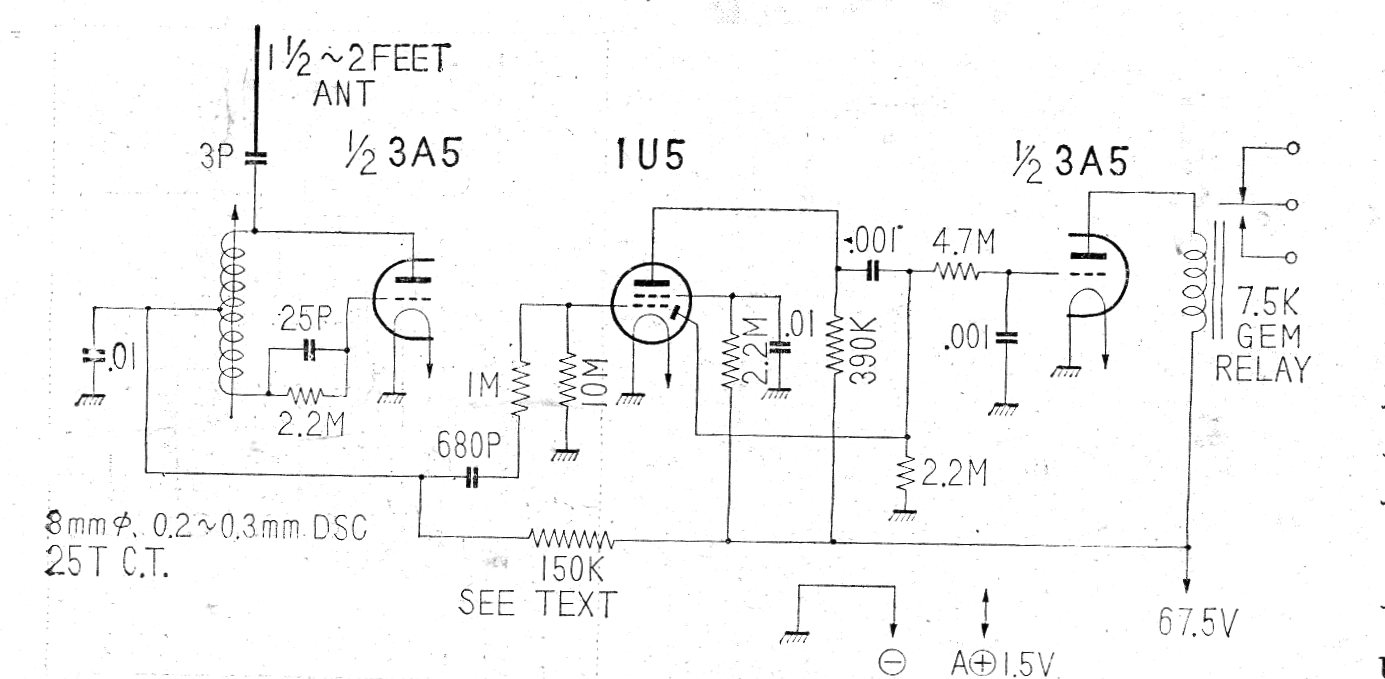

Receptor de control remoto de 3 Válvulas
Receptor de control remoto de 3 Válvulas | Haga click en la imagen para ampliar |
